Improving the waste paper processing efficiency of openable/closed-door waste paper balers requires a multi-dimensional approach, encompassing equipment optimization, operational procedures, maintenance management, and technological innovation. Specific strategies include:
1. Equipment Performance Optimization
Enhancing Compression Capacity: Upgrade the hydraulic system pressure (e.g., from 20MPa to 25MPa) to shorten single compression time and reduce the number of repeated compressions. Optimize the compression chamber structure design to ensure uniform stress on the waste paper and improve compression density.
Automation Upgrade: Add sensors and a PLC control system to achieve automatic detection of feed rate, adjustment of compression frequency, and automatic bale unloading. For example, introduce infrared sensors to trigger compression actions, reducing manual intervention time.
Fast Door Opening/Closing Design: Adopt a pneumatic or electric drive door lock system to reduce door opening/closing time from 30 seconds to within 10 seconds. Combined with optimized slide rail lubrication, this improves loading efficiency.
2. Pre-treatment and Process Improvement
Waste Paper Sorting Pre-treatment: Add a sorting line, using vibrating screens and magnetic separators to remove impurities such as metal and plastic, reducing the risk of equipment jamming. Adding a drying stage to high-moisture waste paper (reducing moisture content from 30% to 15%) improves compression efficiency.
Continuous feeding system: Installing conveyor belts and automatic weighing devices enables continuous waste paper supply. For example, an 800mm wide conveyor belt can transport 2 tons of waste paper per hour, avoiding idle running caused by intermittent manual feeding.
3. Energy Efficiency and Maintenance Management
Variable frequency energy-saving retrofit: Using a variable frequency motor to drive the hydraulic pump, the power is dynamically adjusted according to the load, reducing energy consumption by 20%-30%. A heat recovery device is added to use the waste heat from the hydraulic system in the pre-treatment drying stage.
Preventive maintenance system: Establishing a replacement cycle table for key components (e.g., hydraulic oil replacement every 800 hours, seal replacement every 2000 hours), and configuring a vibration monitor to monitor bearing status in real time, reducing downtime due to sudden failures.
4. Data-driven operation
IoT control platform: Uploading equipment operation data via a 5G module and analyzing historical efficiency curves. For example, a 15% efficiency drop was observed daily between 10:00 AM and 12:00 PM due to excessively high oil temperature; a cooling system was subsequently installed.
Standardized Operation Training: Standard Operating Procedure (SOP) manual was developed to standardize parameters such as bale density (≥600 kg/m³) and single bale weight (1-1.2 tons), reducing efficiency fluctuations caused by human error.
5. Process Innovation
Modular Design: quick-change compression head was developed to adapt to different types of waste paper (e.g., corrugated paper, newspaper), reducing changeover time from 2 hours to 20 minutes.
Dual-Station Design: Alternating A/B station operation mode was adopted, where one station compresses while the other loads material, increasing equipment utilization by 40%.
Through these measures, a paper mill case study showed that the daily processing capacity of a single unit increased from 15 tons to 22 tons, electricity costs decreased by 18%, and overall efficiency improved by 46.7%. It is also recommended to conduct equipment performance evaluations quarterly and continuously iterate and optimize the solution.

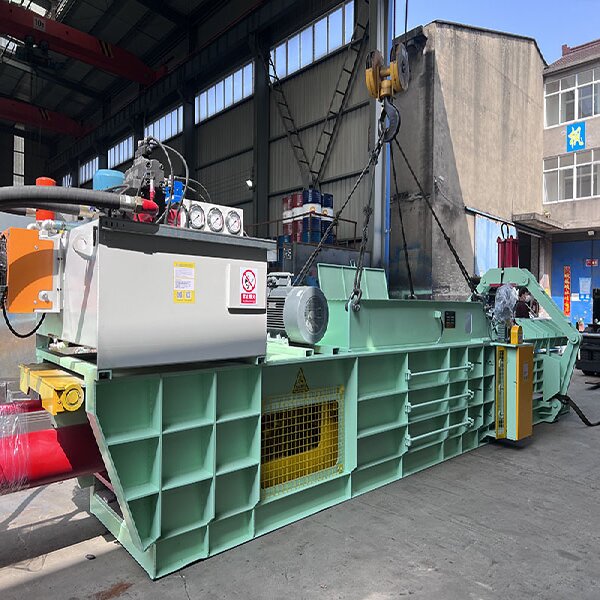

The NKW series of waste paper balers produced by Nick Company features advanced technology, stable and reliable product quality, convenience and speed, and safe operation, fully meeting your needs.
