Automatic Baler RDF Baling Press 副本

NKW250Q Automatic Baler RDF Baling Press Using high-pressure, fast-powered large-scale automatic hydraulic balers, mainly used to compress waste paper, corrugated paper, cardboard boxes, plastic waste, cola bottles, cans and other materials, the average output of 20-25 tons per hour, which Taiwan machine motor using Siemens, domestic high-quality hydraulic system equipment, the United States imported seals to ensure the quality of the equipment

NKW250Q Using high-pressure, fast-powered large-scale automatic hydraulic balers, mainly used to compress waste paper, corrugated paper, cardboard boxes, plastic waste, cola bottles, cans and other materials, the average output of 20-25 tons per hour, which Taiwan machine motor using Siemens, domestic high-quality hydraulic system equipment, the United States imported seals to ensure the quality of the equipment

Send email to us

Product Detail

Product Tags

Video

Product Introduction

Usage

Specialized in recycling and compressing the loose materials like plastic films ,PET bottles, plastic pallets ,waste paper ,grass ,fiber ,used clothes ,cartons ,cardboards trims ,scrap ,etc

Usage

Specialized in recycling and compressing the loose materials like plastic films ,PET bottles, plastic pallets ,waste paper ,grass ,fiber ,used clothes ,cartons ,cardboards trims ,scrap ,etc

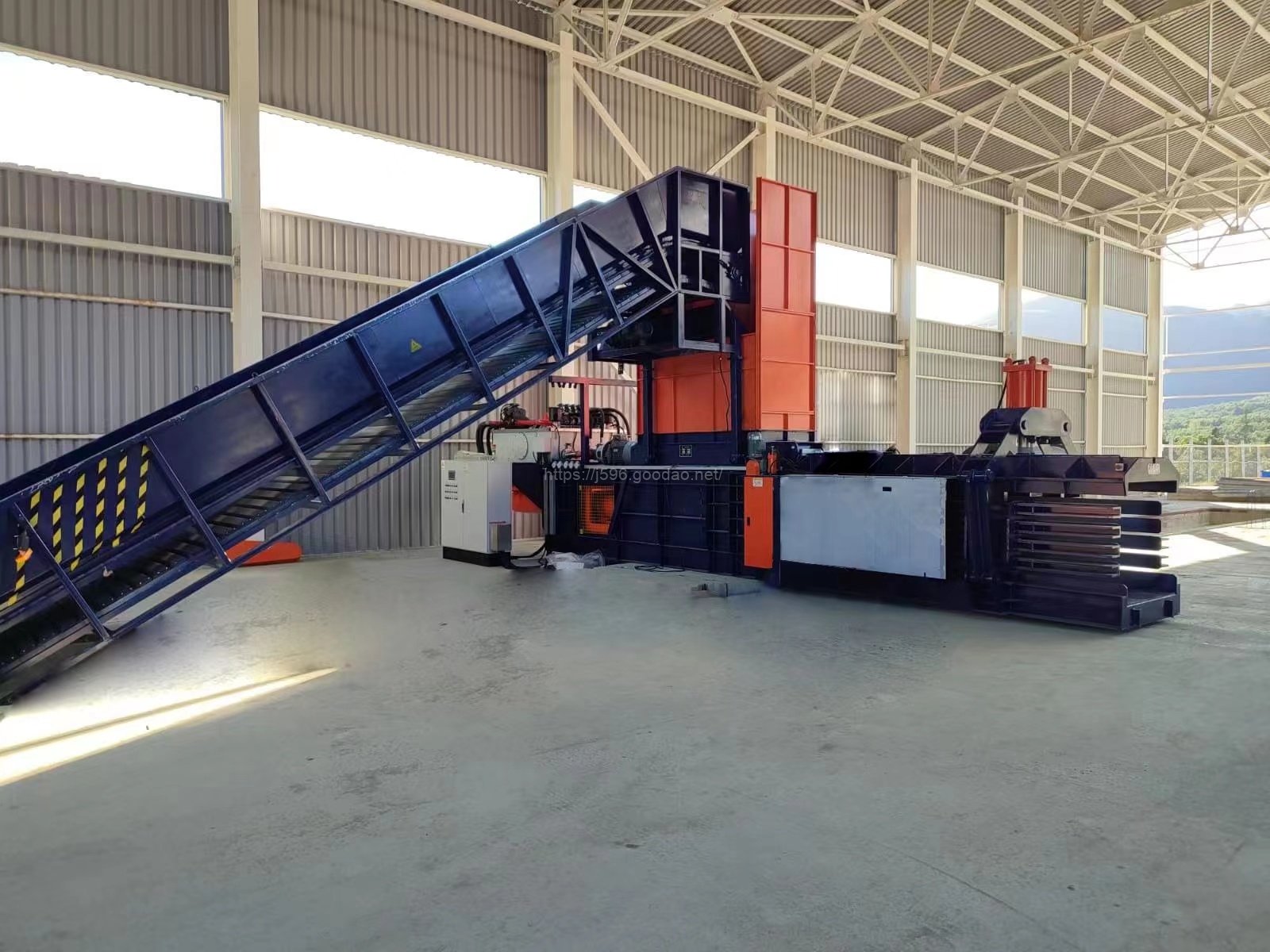

NKW250Q MSW Automatic Baler RDF Baling Press 2

Parameter Table

Item	Name	parameter
Mainframe parameter	Bale size	1100mm（W）×1250mm（H）×～2200mm(L)
	Material type	Scrap Kraft paper, Newspaper, Cardboard , Soft Film, Plastic，
	Material density	600～700Kg/m³（Moistures 12-18%）
	Feed opening size	2400mm×1100mm
	Main motor power	45KW×2sets+15KW
	Main cylinder	YG430/230-2900
	Main cylinder force	250T
	Max working force	30.5MPa
	Mainframe weight(T)	About 38 tons
	Capacity	25-30 ton per hour
	Oil tank	2m³
	Mainframe size	About 11.5×4.8×5.8M（L×W×H）
	Tie wire line	6 line φ3.0～φ3.5mm³iron wire
	Pressure time	≤28S/ (go and back for empty load)
Chain conveyor technology	Model	NK-III
	Conveyor weight	About 11 tons
	Conveyor size	2000*16000MM
	terra hole size	7.303M（L）×3.3M（W）×1.2M（deep）
	Conveyor motor	11KW
Cool tower	Cooling system	Water Cooling +fan Cooler
