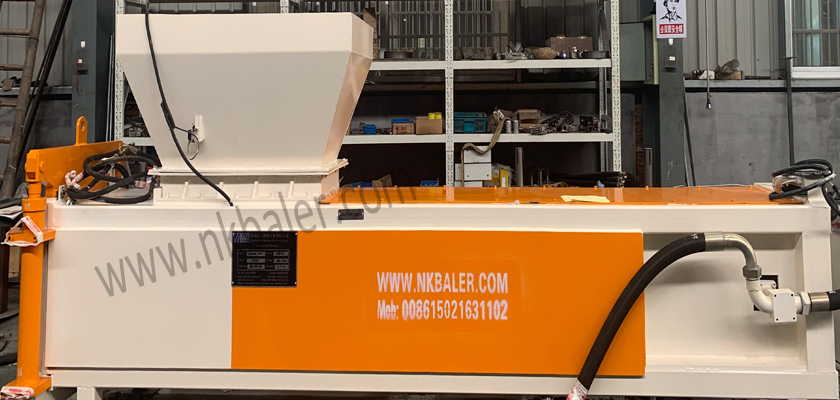

NKB200 Block Making Machine
This NKB200 block making machine equipped with PLC control system and high degree of automation and automatic feeding conveyor and mainly used for storage and transportation and help save transportation cost,no need bag.

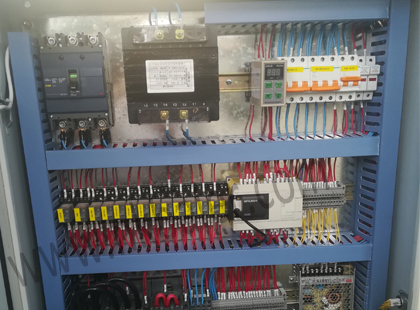

1.Used PLC control is simple,easy to used and high degree of automation,recruitment,using artificial feeding or automatic feeding conveyor.
2.The machine is mainly applicable is sawdust,cotton seed,shell husk compression moulding materials,facilitate their storage,transportation cost.
3.Broken materials via the mass object,compressed into directly handling,no bag.the rear can be spread by human
| Model | NKB200 |
| Pressure | 200T |
| Bale size(L*W*H) | 480*480*(220-350)mm |
| Work pressure | 21Mpa |
| Compress time | 22s |
| Bale capacity | 90 Bock/H |
| Moisture require | 13% or under |
| Feed opening size/(L*H) | 700*480mm |
| Bale weight | 30-35Kg/Bag |
| Capacity | 2.5-3T/H |
| Voltage | 200-480V/50Hz/3Phase |
| Power | 40HP |
| Machine size(L*W*H) | 4260*1100*1800mm |
| Machine weight(T) | 6T |
