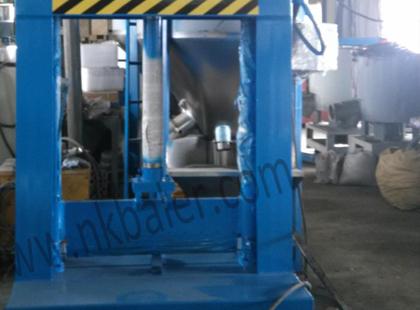

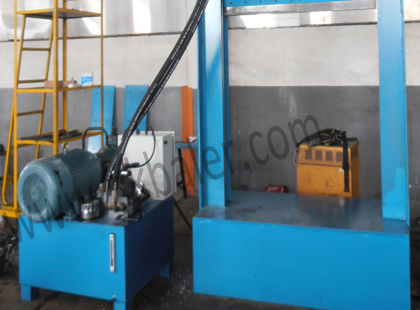

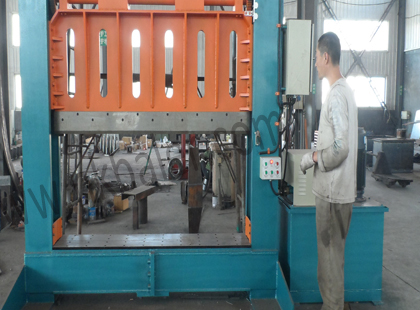

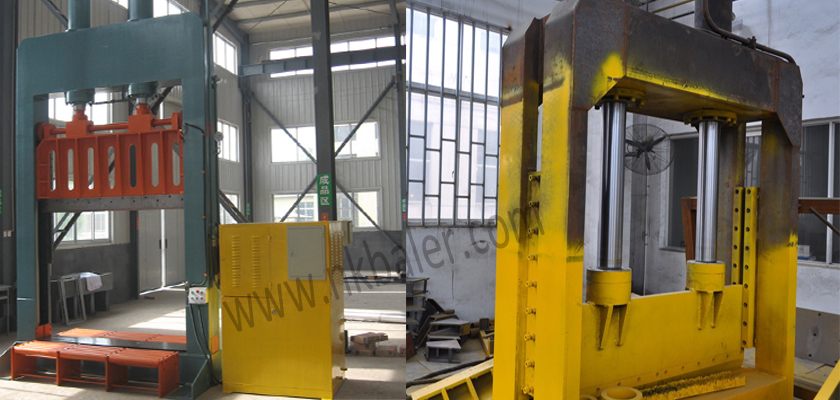

NKC150 NICK Rubber Hydraulic Cutting Machine

Rubber cutting equipment mainly used in many kinds of large sized rubber materials or synthetic rubber products,such as large plastic tubes,bale film,rubber lump,sheet materials and etc.

NICK cutting machine,this kind machine widely used two cylinders to cut mainly including rubber knife,frame, cylinder, base, auxiliary table, hydraulic system and electric system.

Send email to us

Product Detail

Product Tags

Video

Product Introduction

Hydraulic cutting machine designed with protecting the edge of the rubber knife. It is easy to use When cutting the raw rubber and put the raw rubber under the rubber knife, Only press the start button, the knife can cut the rubber into small pieces.

Features

1.Hydraulic control operation,manual feeding,auto-cutting.
2.Hydraulic system stabilization , double cylinder balance cutting.

3.It can fix security masks and safety nets equipment for protecting.

4.It can fix auto-roller processing after cutting.

Parameter Table

Model	NKC150
Cutting width	1500mm
Cutting stroke	1000mm
Hydraulic power	150T
Single time	40-50S
Pressure	15Mpa
Power	22Kw/30HP
Machine size(LWH)	24008003800mm
Machine Weight(T)	3.5T
