Scrap Cutting Baler Machine

Vertical hydraulic rubber cutting machine also called rubber hydraulic cutter used for cutting all kinds of large sized natural rubber or synthetic rubber products,scrap tyre ,hard plastic ,such as large plastic tubes,bale film,rubber lump,sheet materials and etc

This Rubber Hydraulic Cutting Machine used for cutting all kinds of large sized natural rubber or synthetic rubber products,such as large plastic tubes,bale film,rubber lump,sheet materials and etc. this machine used two cylinder to cut ,and keep it balance,mainly consists of rubber knife,frame, cylinder, base, auxiliary table, hydraulic system, and electric system.


Product Detail

Product Tags

Video

Features

Hydraulic system stabilization , double cylinder balance cutting .It can fix security masks and safety nets equipment for protecting .It can fix auto-roller processing after cutting .1Hydraulic control operation ,manual feeding ,auto-cutting .Hydraulic system stabilization , double cylinder balance cutting .3.It can fix security masks and safety nets equipment for protecting .It can fix auto-roller processing after cutting .

Its with Nick Baler brand company design and special development on this point for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber into small pieces. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.

Learn more details,Freely let us know and with pleasure to be on service of you and would like answer any questions and your concerns.Our professional service is key to assured our all quality.welcome to visit NICK baler.Don’t hesitate to let us know if any further needs to help from us

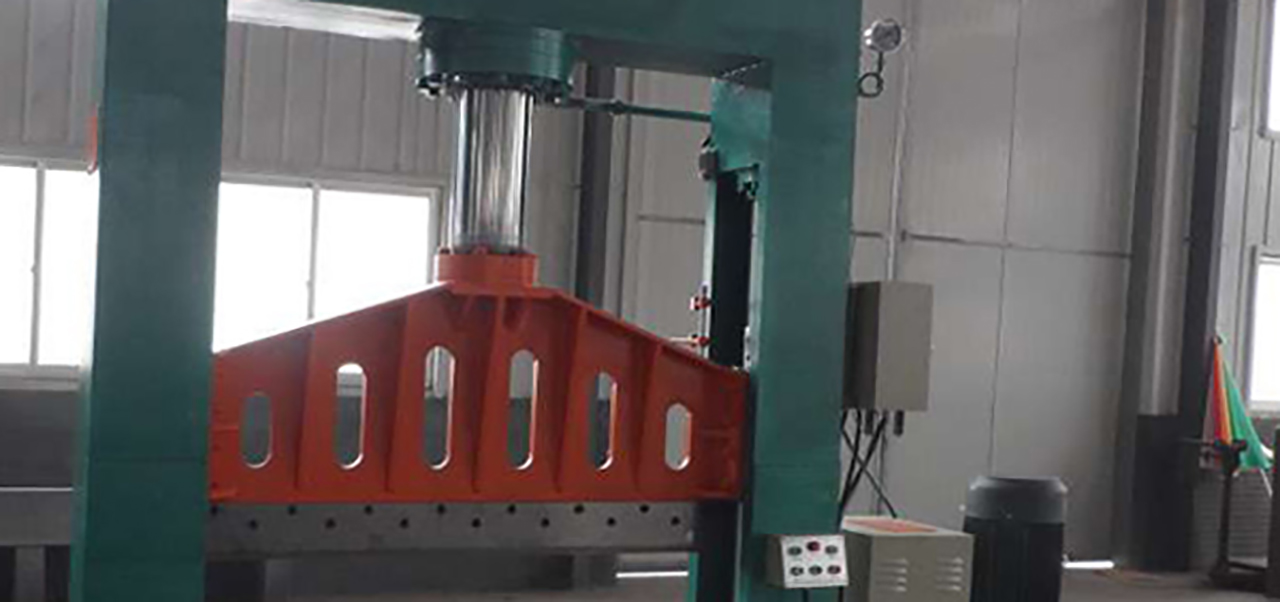

ahfsfa

Parameter Table

Model

NKC180

NKC200

Cutting width

1800mm

2000mm

Cutting stroke

800mm

800mm

Hydraulic power

180Ton

200Ton

Single time

20S

20S

Power

30KW/40HP

37.5KW/50HP

Machine size(L*W*H)

2100*1000*2800mm

2500*1200*3200mm

Weight

5000Kg

7000Kg

Product Details

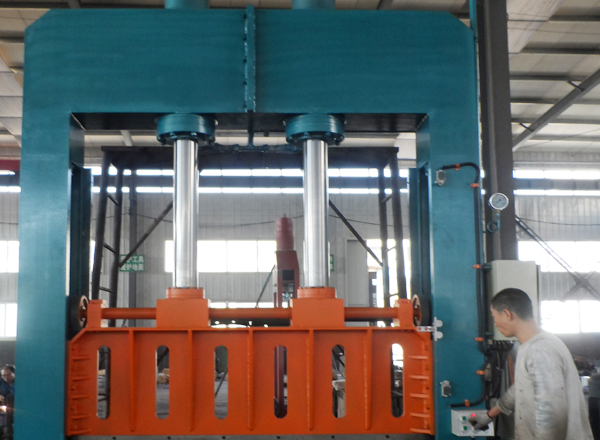

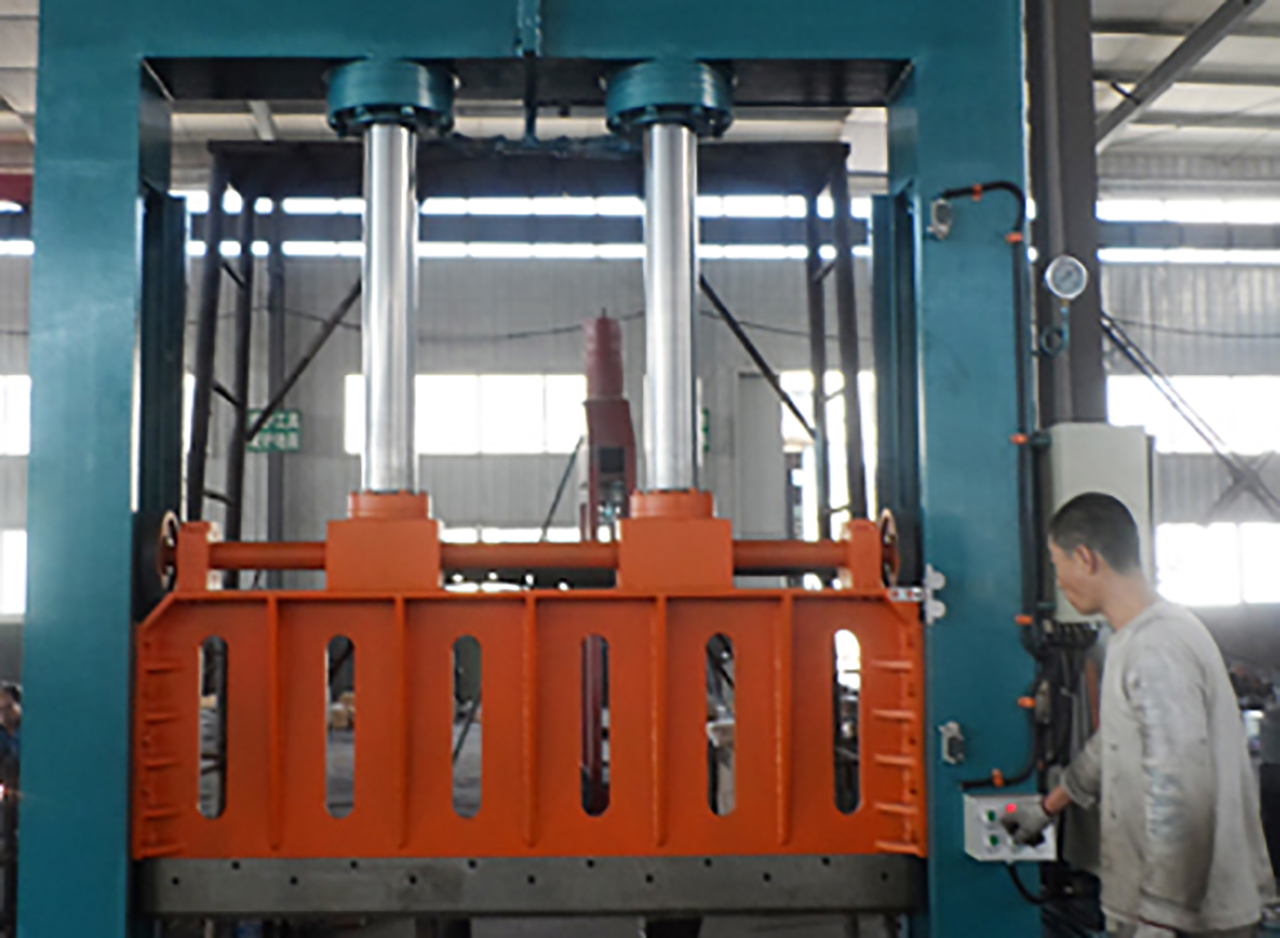

SAM_2475

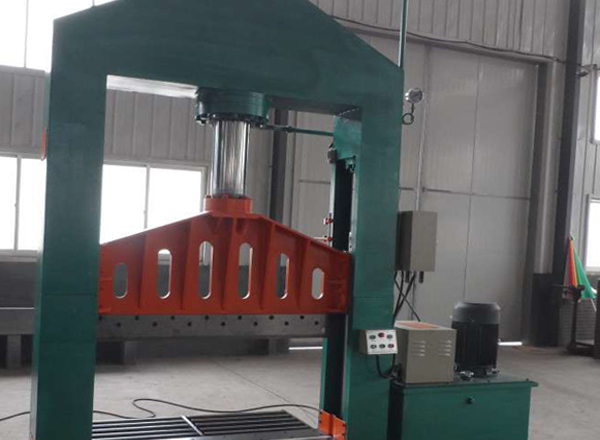

520017561785788743
SAM_2475   1
SAM_2475
