Tires Cutting Machine

NICK rubber cutting machine widely used in all kinds of large sized natural rubber or synthetic rubber products,such as large plastic tubes,bale film,rubber lump,sheet materials and etc.

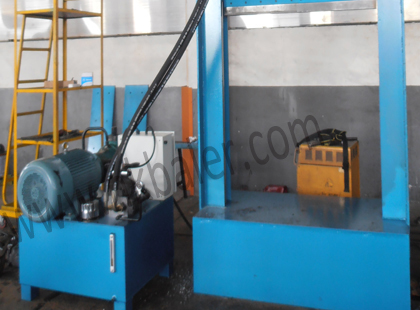

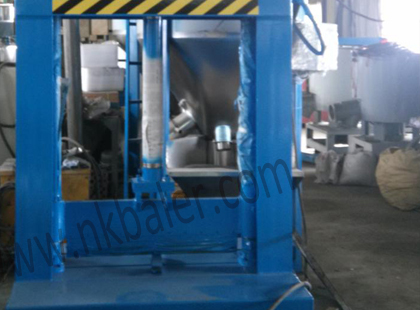

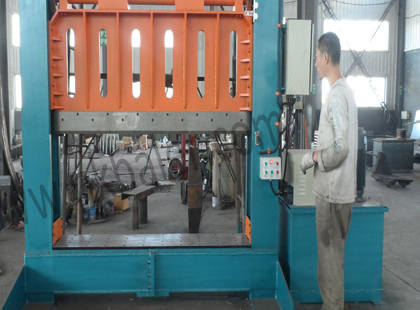

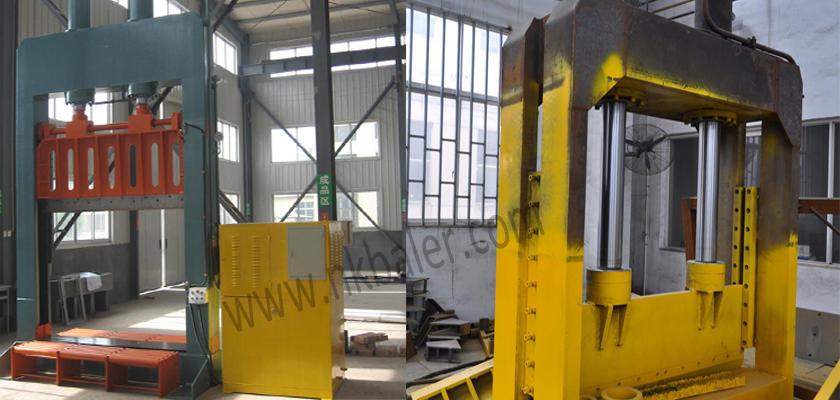

NICK hydraulic cutting machine used two cylinder to cut and keep it balance,mainly consists of rubber knife,frame, cylinder, base, auxiliary table, hydraulic system and electric system.

Send email to us

Product Detail

Product Tags

Video

Product Introduction

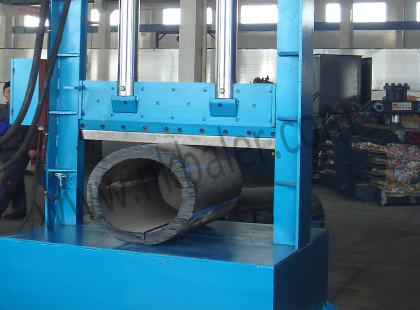

NICK brand company design and special development on this point for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber into small pieces.

Features

1.Hydraulic control operation,manual feeding,auto-cutting.

2.Hydraulic system stabilization , double cylinder balance cutting.

3.It can fix security masks and safety nets equipment for protecting.

4.It can fix auto-roller processing after cutting.

Parameter Table

Model	NKC120
Cutting width	1200mm
Cutting stroke	1200mm
Hydraulic power	120T
Single time	30-40S
Pressure	12Mpa
Power	15Kw/20HP
Machine size(LWH)	30007003600mm
Machine Weight(T)	2.8T
