Cutting Machine

Hydraulic cutting machine is mainly used in various industrial sectors to cut large size of tires, rubber, leather, hard plastic, fur, twigs and the like to make the size of the object smaller or shorter, to facilitate handling and transportation, and to reduce labor cost, especially OTR tires, TBR tires, TRUCK TIRE cutting, easy to use, easy to operate.

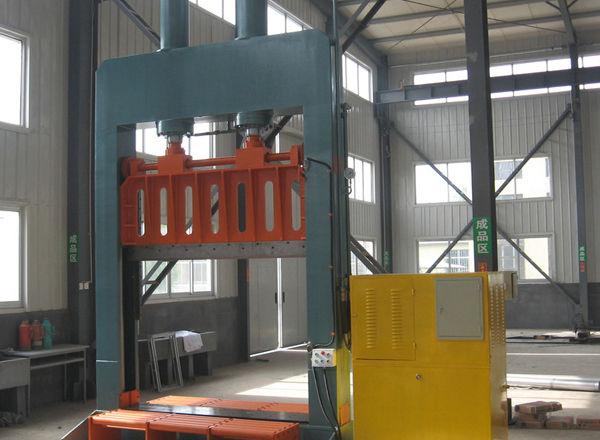

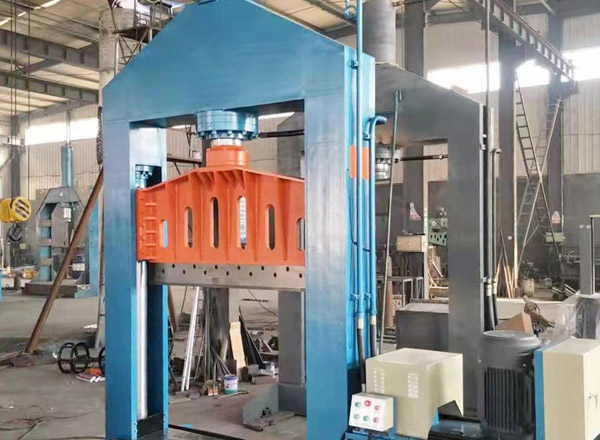

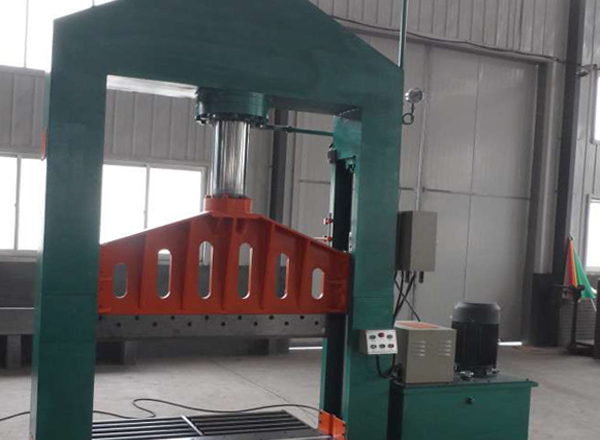

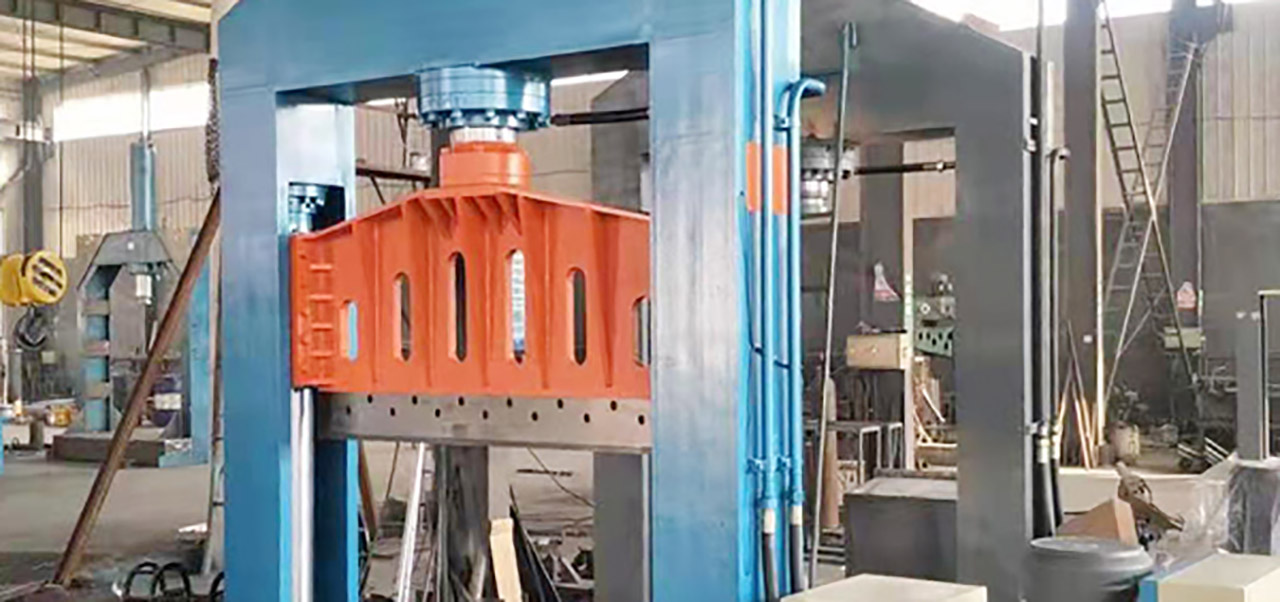

This machine is composed of main engine, hydraulic system and operating system. The main engine includes the body and the main oil cylinder, two fast cylinders, hydraulic system for the pump station, to provide hydraulic oil to the main engine, the operating system includes push button switch, travel switch, electrical cabinet. It is described as follows:

Send email to us

Product Detail

Product Tags

Video

Features

1. Fuselage

The fuselage is composed of upper beam, middle plate, lower beam, column, and nut. Rely on four columns to form a rigid frame. The master cylinder is fixed in the middle of the upper beam, and the middle plate is connected with the piston rod of the master cylinder and the piston rod of the fast cylinder.

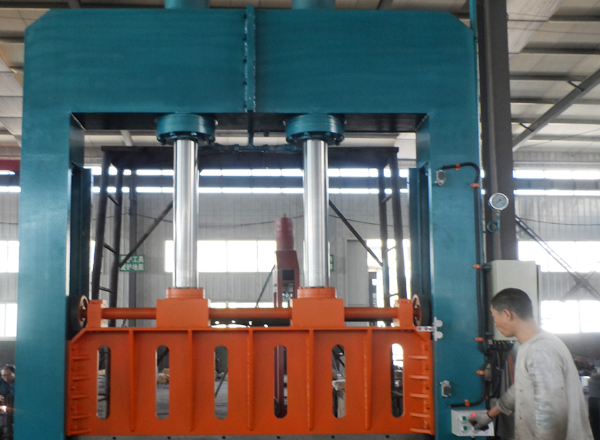

2. master cylinder

The master cylinder flange and the upper beam are fixed, the master cylinder and the middle plate are connected, through the hydraulic method and hydraulic pump to achieve the lifting of the cylinder to complete the cutting parts.

3. power mechanism

The power system consists of hydraulic station and electrical cabinet. Hydraulic station is composed of motor, high pressure pump, hydraulic valve of various functions. Hydraulic station is a mechanism that generates and distributes working oil to make the main engine realize various actions.Any needs to help from us,Don’t hesitate to contact us and with pleasure to be on service of you

Parameter Table

Model	NKC180	NKC200
Cutting width	1800mm	2000mm
Cutting stroke	800mm	800mm
Hydraulic power	180Ton	200Ton
Single time	20S	20S
Power	30KW/40HP	37.5KW/50HP
Machine size（LWH）	210010002800mm	250012003200mm
Weight	5000Kg	7000Kg
