Hay Baling Machine

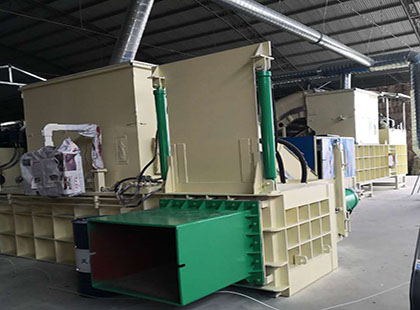

Hay Baling Machine.This model. the bale size is 1500*1200*900mm. the bale weight is 60 kgs per bales ,

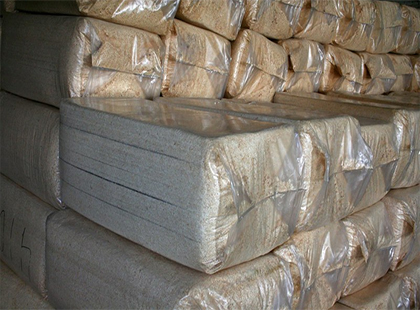

even the bale size we can make it as your require ,the capacity is very big and up to 5-6 ton per hour.and use higher hydraulic pressure to compress and push ,after compress while the bales ejected out into bags directly.
One of the main uses for a horizontal baling machine and bagging machine is the baling of loose materials.Truthfully ,when you have waste like sawdust ,wood chips,rags ,peanut shells,rice hulls ,cotton seeds,and similar ,disposing of /recycling these materials is diffcult . a horizontal bagging machine makes sense.Because it can automatically feed ,compact ,and bag these materials for easy storage /transport/ recycling .some facilities even resell the bagged waste materials.
1.This machine is closed type baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.
2.It has high strength output door, hydraulic automatic open-end door, convenient operation and safety And this processing is full automaticly ,

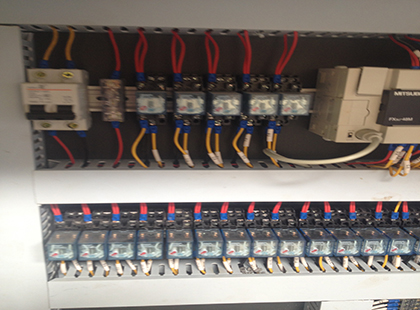

3.It configures with PLC program and electric button control, operated simply and equipped with
automatic feeding detection, can compress bale automatically.
4.Block size and voltage can be customized according to customers' reasonable requirements. Bales
weight depends on different materials.
5.Adopt unique concave type of multi-point cutter design to improve the cutting efficiency and
prolong service life of the cutter.
| Model | NKB280 |
| Pressure | 120/160Ton |
| Bale size（L*W*H） | 1500*1200*900mm |
| Feeding open size（L*H） | 2000*1200mm |
| Materials | Hay /straw /grass |
| Speed | 30bale/hour |
| Capacity | 12-15T/hour |
| Voltage | 200-480V/50HZ |
| Bagging way | Pp bags |
| Power | 75KW*2/200HP |
| Machine size （L*W*H） | 8960*3030*2600mm |

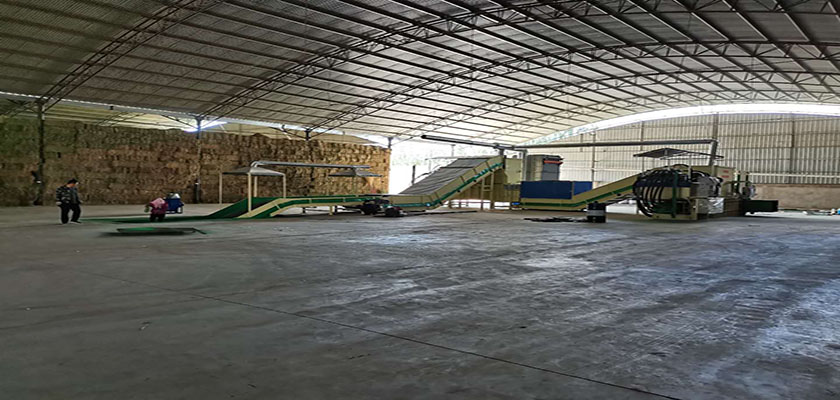

| Feeding way | Steel Conveyor |
| Weight | 32T |
